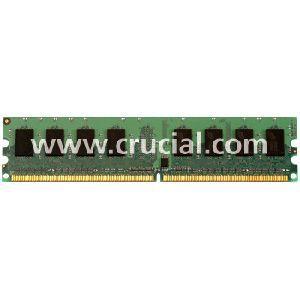

Crucial 1GB DDR2 SDRAM Memory Module

A dual inline memory module (DIMM) consists of a number of memory components (usually black) that are attached to a printed circuit board (usually green). The gold pins on the bottom of the DIMM provide a connection between the module and a socket on a larger printed circuit board. The pins on the front and back of a DIMM are not connected to each other.

240-pin DIMMs are used to provide DDR2 SDRAM memory for desktop computers. DDR2 is a leading-edge generation of memory with an improved architecture that allows it to transmit data very fast.

Each 240-pin DIMM provides a 64-bit data path (72-bit for ECC or registered or Fully Buffered modules). (The Ballistix" and Ballistix Tracer" high-performance memory do not come in 72-bit or registered modules.)

Standard DDR2 240-pin DIMMs are available in DDR2 PC2-3200 SDRAM, DDR2 PC2-4200 SDRAM, DDR2 PC2-5300 SDRAM, and PC2-6400 SDRAM.

To use DDR2 memory, your system motherboard must have 240-pin DIMM slots and a DDR2-enabled chipset. A DDR2 SDRAM DIMM will not fit into a standard SDRAM DIMM socket or a DDR DIMM socket.

The number of black components on a 240-pin DIMM can vary, but it always has 120 pins on the front and 120 pins on the back, for a total of 240. 240-pin DIMMs are approximately 5.25 inches long and 1.18 inches high, though the heights can vary. While 240-pin DDR2 DIMMs, 184-pin DDR DIMMs, and 168-pin DIMMs are approximately the same size, 240-pin DIMMs and 184-pin DIMMs have only one notch within the row of pins. The notch in a 240-pin DDR2 DIMM is closer toward the center of the module.

Ballistix and Ballistix Tracer 240-pin DIMMs

Our high-performance Ballistix 240-pin DIMMs come in DDR2 PC2-5300 SDRAM, DDR2 PC2-6400 SDRAM, and DDR2 PC2-8000 SDRAM. The Ballistix Tracer illuminated, activity-indicating high-performance 240-pin DIMM comes in SDRAM, DDR2 PC2-6400 SDRAM, and DDR2 PC2-8000 SDRAM

Ballistix 240-pin DIMM

Approximately 5.25 in. by 1.18 in. (133.35 mm by 30 mm)

Ballistix Tracer 240-pin DIMM

Approximately 5.25 in. by 1.18 in. (133.35 mm by 30 mm)

• 1 GB of memory to refine your computer's performance
• DDR2-800/PC2-6400 operates at up to 400 MHz data bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
• Up to 800 MHz speed with Unbuffered signal is enough to run heavy software smoothly while surfing web with dozens of tabs open
